New Features in Version 9

Free Trial

Many new layouts are available to place your entities in geometric shapes and sort them based on the selected entity gradient value.

Circular Layout

Circular Spiral

Circular Spiral Entities sorted from the center growing in a spiral

Circular Concentric

Circular Concentric Entities placed in circles from the center out

Circle with Center

Circle with Center One big circle with the first entity in the center

One Circle

One Circle All the entities in one big circle

Elliptical Layout

Elliptical Spiral

Elliptical Spiral Entities sorted from the center growing in a spiral

Elliptical Concentric

Elliptical Concentric Entities placed in ellipses from the center out

Ellipse with Center

Ellipse with Center One big ellipse with the first entity in the center

One Ellipse

One Ellipse All the entities in one big ellipse

Rectangular Layout

Filled Rectangle

Filled Rectangle Entities in a rectangle filling the window

Rectangular with Center

Rectangular with Center One big rectangle with the first entity in the center

One Rectangle

One Rectangle All the entities in one big rectangle

Square Layout

Filled Square

Filled Square Entities in a rectangle filling the window

Square with Center

Square with Center One big square with the first entity in the center

One Square

One Square All the entities in one big square

Triangular Layout

Filled Triangle

Filled Triangle Entities in a triangle filling the window

Triangle with Center

Triangle with Center One big triangle with the first entity in the center

One Triangle

One Triangle All the entities in one big triangle

With one click, you can now put all your entities and relationships on a new Visualizer diagram. You can also set the default layout to one of the new Geometric styles.

Panel on Home Page

All To Visualizer Home Page

Visualizer Option on Top Menu

All To Visualizer Top Menu Also includes a quick way to set Layout Options

There is a new option to show the sum of values on the line for all the relationships between two entities with numeric formatting options.

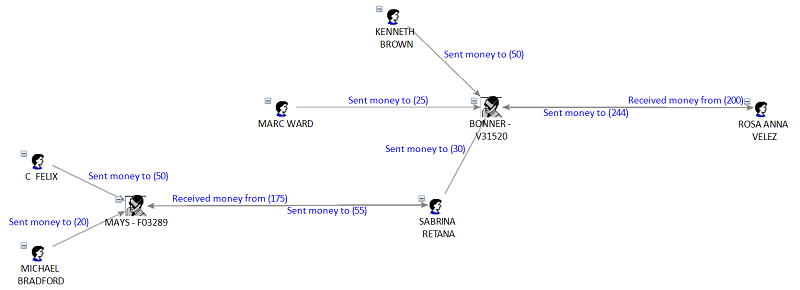

Relationship Lines with Sum

Entity Search

The entity search form is redesigned to be more powerful and easier to use. When the form appears, the list of last selected entities appears to eliminate the need to search for your most common entities. There are options to select and send it to Visualizer, view its details, and export it to Excel.

Entity Search

The relationship search form is similarly redesigned to show the more recently selected relationships.

Advanced Entity Search

The advanced entity search provides the ability to search many more fields for specific values, numeric and date ranges, blank or not blank, and even document text contents.

Advanced Entity Search

The new Retrieve Ranges button inserts the minimum and maximum values for the numeric and date fields based on all the entities in your database. If you run this from the Data Refinement feature in the Visualizer Diagram, it retrieves the values for the data in the diagram. A great way to quickly understand your dataset.

Advanced Relationship Search

The advanced relationship search provides the ability to search many more fields for specific values, numeric and date ranges, blank or not blank, and even document text contents.

Advanced Relationship Search

The new Dataset Builder simplifies the selection of entities and relationships for the Visualizer.

The new Advanced Dataset Builder is a Wizard with separate pages for detailed selection of entities and relationships, and previewing the results. It illustrates the 15 types of connection options to better understand the filter and connection combinations.

Advanced Dataset Builder First Page of the Advanced Dataset Builder

PDF Files Word Documents Excel Spreadsheet Files Sentinel Visualizer is a document search repository!

Each Entity and Relationship can have an unlimited number of documents associated with them. If the documents are embedded (rather than linked), Sentinel Visualizer supports searching its text contents. Your documents can be a wide variety of formats such as Microsoft Excel spreadsheets, Microsoft Word documents, PDF files, HTML, etc.

Under Advanced on Entity Search and Relationship Search, or in the Advanced Dataset Builder, enter the text to search under Doc. Content.

Document Content

This retrieves the list of entities or relationships with at least one document that contains your search text. In the Advanced Dataset Builder, the results also list the specific documents.

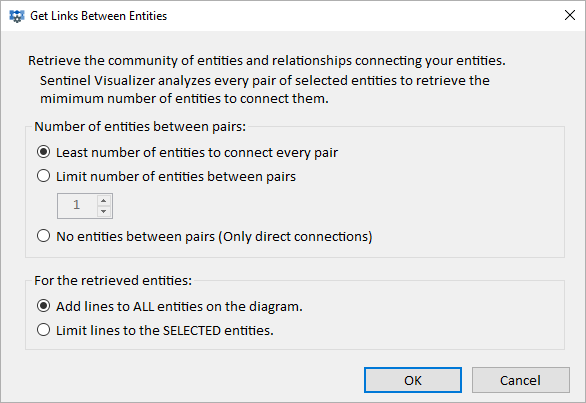

Get Links adds entities and relationships to the diagram for the selected entities. When new entities are added to the diagram, they are added with links to all other entities on the diagram. You can specify the number of degrees from the menu or specify the number for the new Custom Degrees feature.

Get Links Menu

Get Links Custom Degrees

From One Entity to Its Entire Network

This new option gets all the entities linked to your selected entity or entities. This adds all the entities in the network without guessing how many degrees it has.

Start with One Entity

One Entity

Get Links One Degree

Get Links One Degree Includes links between links

Get Links Two Degrees

Get Links Two Degrees

Get Links Entire Network

Get Links for the Entire Network

Between Selected

This is new and extremely powerful feature adds the fewest entities among your selected entities to find the smallest network among them.

For example, for Contact Tracing, three students tested positive. Between Selected quickly finds the shortest path between them.

Links to two or more infected students The infected all have siblings on the Basketball Team! Get them tested!

Combined with Data Refinement

Data Refinement lets you filter the type of Entities and Relationships on your diagram.

If you have data refinement turned on, Get Links now respects those settings and only retrieves the entities and relationships that pass those filters. Easily focus on the data you want without retrieving the data you want to exclude.

The new Transform button allows you to modify your diagram without redrawing it. Rotate the entire diagram, and flip it horizontally and vertically. Resize (stretch) it, including Stretch to Fit to maximize it to your current screen dimensions.

Transform Menu

Rotation angle

Resize Options

The panels on the right side of the Visualizer are reorganized and improved. Here are some of the new features on the Entities, Gradients, and Links panels.

Entities Panel

The Entities panel makes it easy to just show the selected entities with or without their connected entities. Quickly show all the linked and unlinked entities. Filter on numeric ranges and perform detailed refinement on all the Entity fields.

Entity selected and connected filter on Visualizer

Gradients Panel

Color and size your entities based on a variety of metrics. This lets you see the relative value between your entities.

Gradient Panel

Gradient colors and size can now be applied to Entities and Relationship Lines separately.

Links Panel with Shortest Path Analysis

The Links Panel provides tools that aid in the connection between entities. Shortest Paths can now be filtered, and All Paths can be controlled by the number of entities between your selected entities.

Links Options for Visualizer

Links Panel with Filterable Network List

The Networks option displays a list of disconnected networks on your diagram with their entity count. As you click on each item, the diagram highlights the members of that network. Check the filter button to only show the selected network's entities.

Network list, highlighted selected network

Diagrams can be saved to your database and retrieved later. When a saved diagram is opened on an existing diagram, you now have the option to merge it.

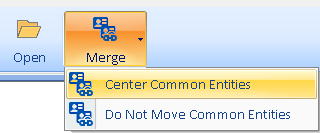

Merge Button

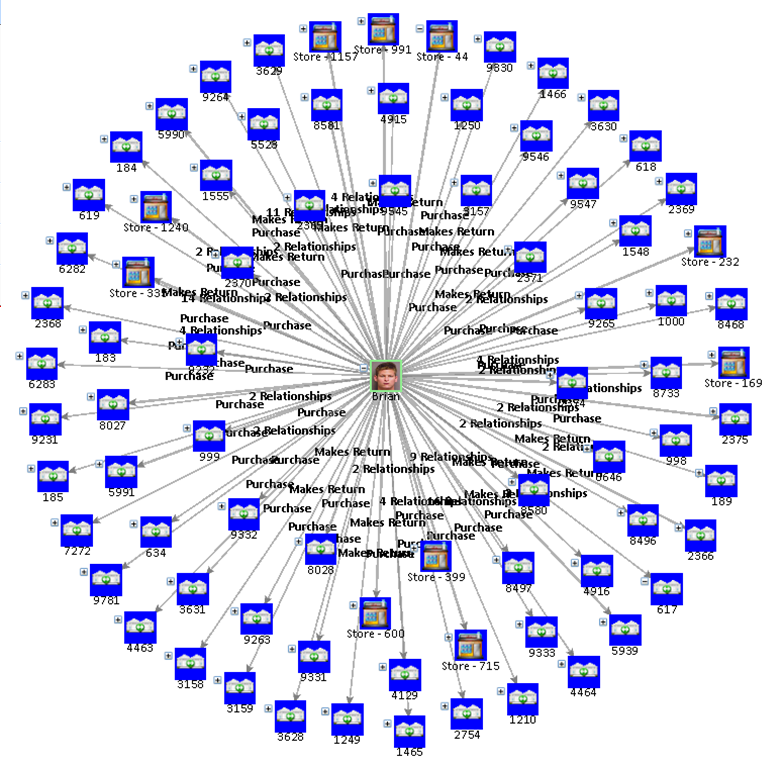

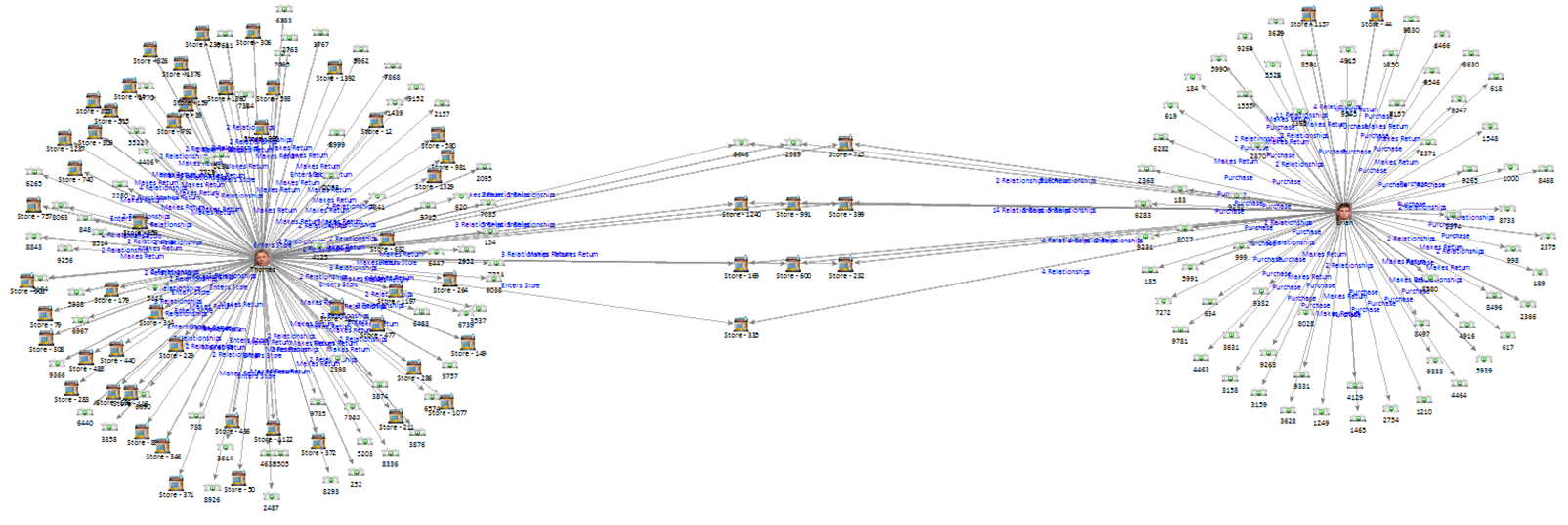

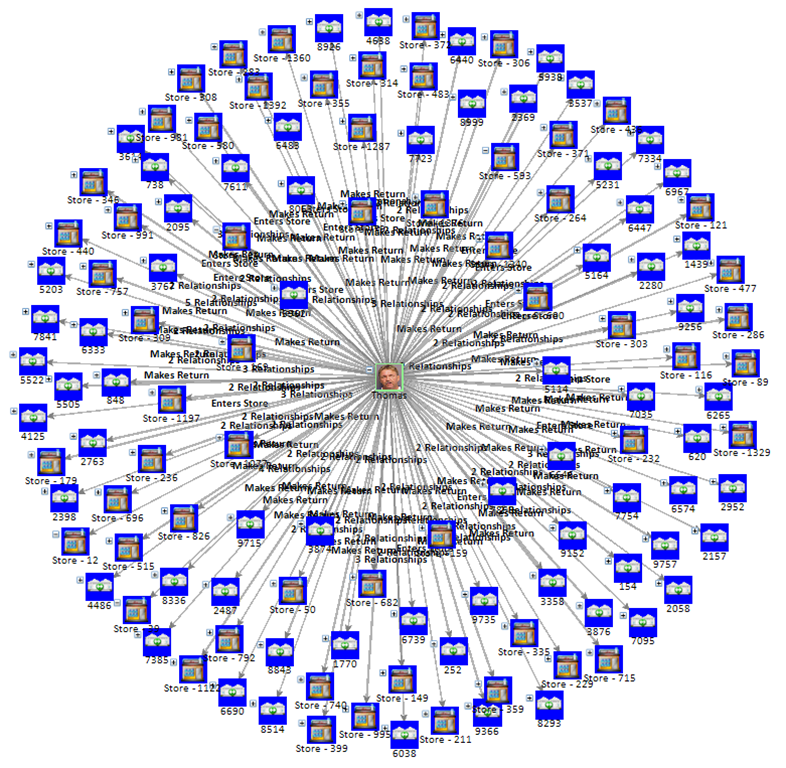

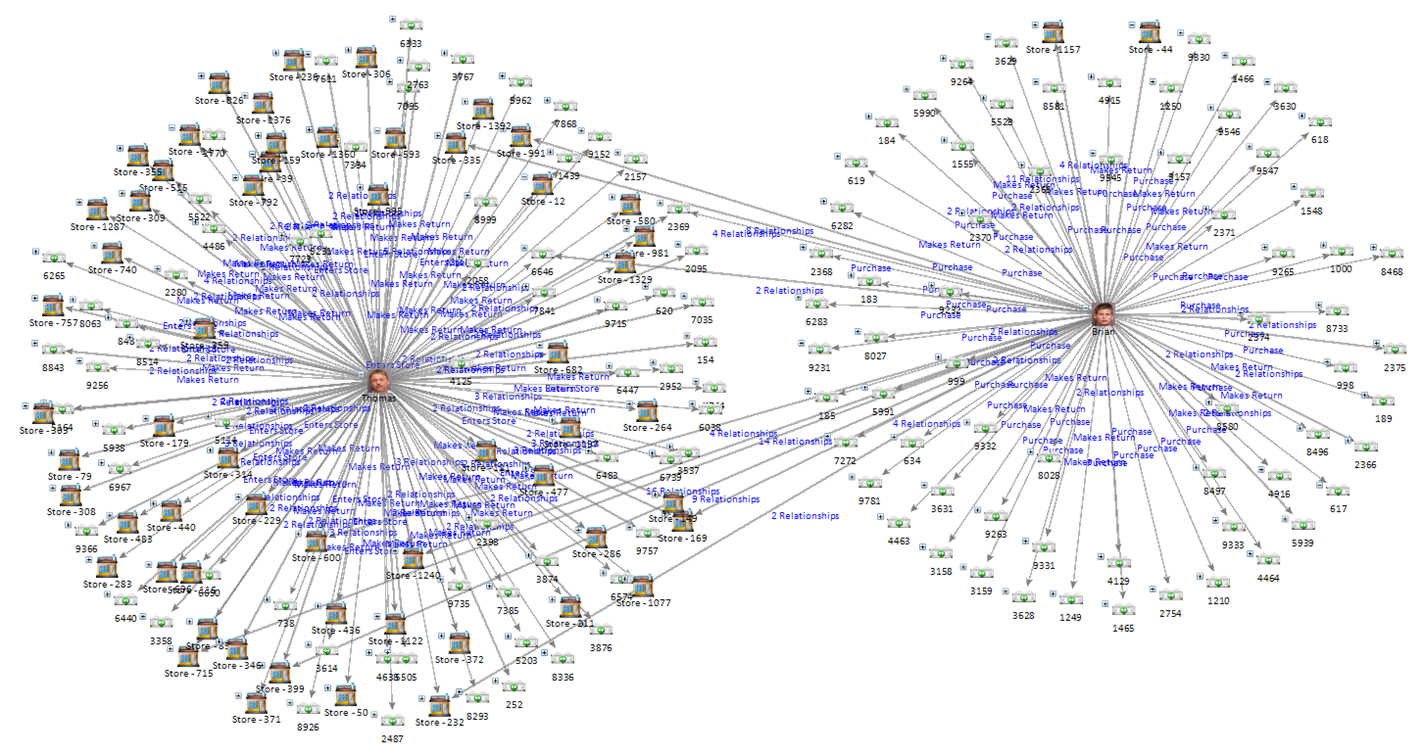

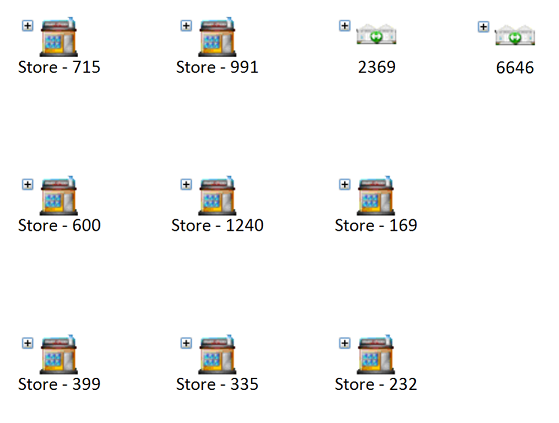

The merged diagram is placed to the right of your existing diagram. Easily combine multiple diagrams and separate analysis into one.

Multi-level Undo and Redo are now available to reset the addition or removal of entities, relationships, shapes, layouts, transformations, and other significant changes to the diagram.

Undo and Redo Button

Never worry about making a mistake as you analyze your data visualization.

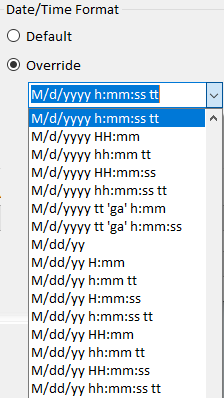

The import wizard is easier to use and catches common mistakes such as warning when the import entity and relationships do not exist in current database. It no longer defaults to the previous entity and relationship types, so you specifically select it.

The user interface is improved with the toolbar icons enlarged and more modern; New is renamed to Clear, and tabs in the bottom section are moved above it.

A database checkpoint is automatically created before each import to simplify rollback.

Export/Import Lookup Tables Between Databases

Export/Import Tables All the values in your lookup tables can be exported to a Sentinel Visualizer Lookup file (*.SVL) that can be imported by another database. This is a quick way to update the lookup values across databases or create new databases with a custom set of lookup values.

Delete Unused Lookup Values

Easily delete all the lookup values in the current database that are not used.
